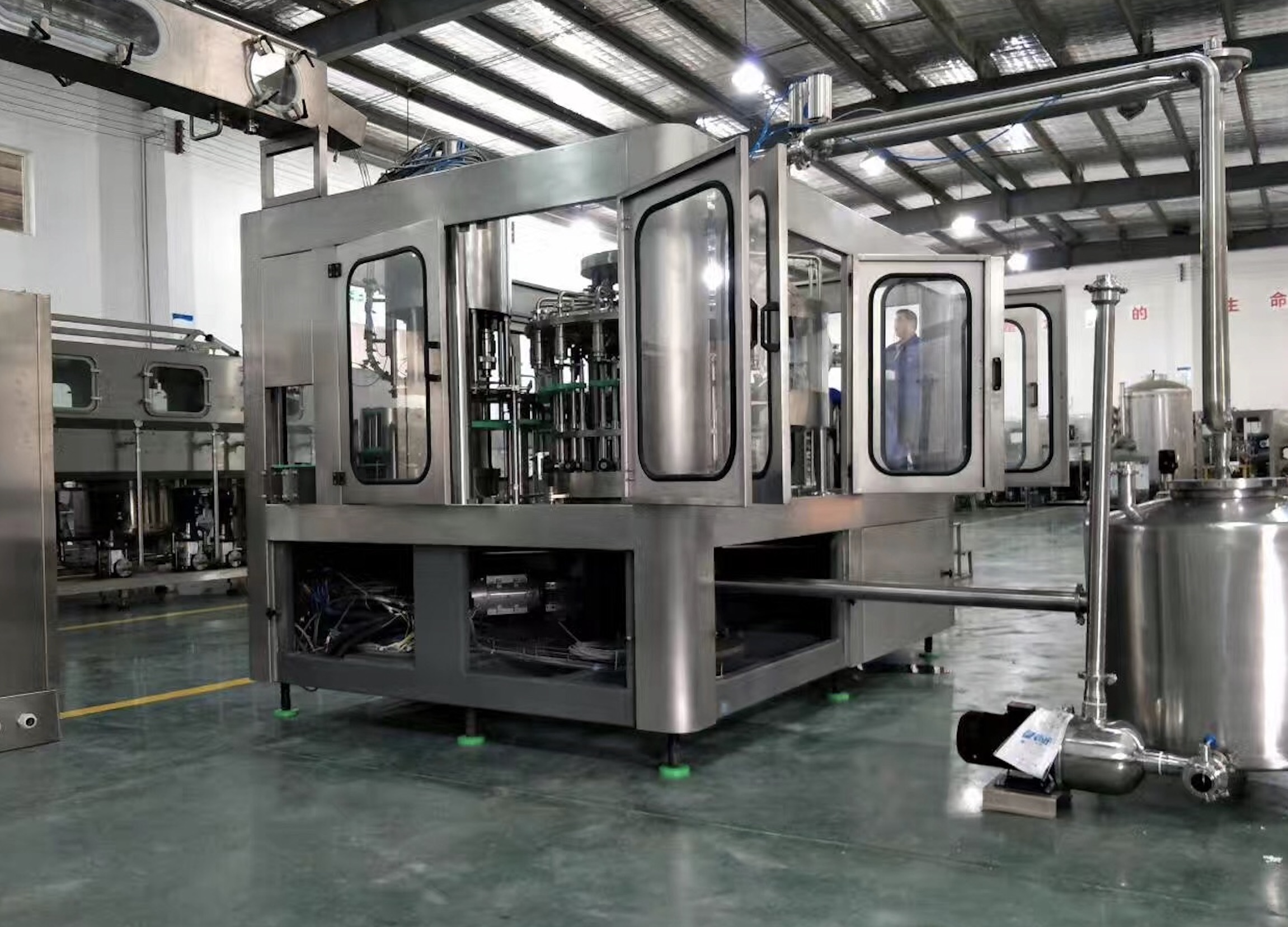

Bottled water Filling machine
The water filling machine is consisted of ringsing-filling-caping all together. CGF water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water filling machine and packaging machinery production line.
The water filling machine is consisted of ringsing-filling-caping all together. CGF water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water filling machine and packaging machinery production line.
1) Bottle infeed
Bottle infeed by combination of infeed starwheels.
Equipped with bottle jam protection device.
2) Discharge Starwheel
Nylon starwheel and conveyor belt work to discharge bottles.
5) Capper
5) Capper
|
Model
|
CGF12125
|
CGF18186
|
CGF24248
|
CGF323210
|
CGF404012
|
CGF505012
|
|
washing, filling and capping heads
|
12-12-5
|
18-18-6
|
24-24-8
|
32-32-10
|
40-40-12
|
50-50-12
|
|
Production capacity(600ml) (B/H) |
2000-4000
|
5000-7000
|
8000-12000
|
12000-15000
|
16000-20000
|
20000-24000
|
|
Motor power(kw)
|
2.2kw
|
2.2kw
|
3kw
|
5.5kw
|
7.5kw
|
11kw
|
|
Weight (kg)
|
2500
|
3500
|
4500
|
6500
|
8500
|
9800
|
